I have a question about wufi 3d-object.
I want to use 3D-objects to simulate an ungergroud building hygrothermal. However, WUFI wifi film about 3d-objects is not avaible anymore. I search on the internet and read WUFI help but cannot find more information about how to built a 3D-objects. I am also wondering how to connect a 3d-object with the already built model zone. There are many boundary conditions which share the same name listed in table, and I cannot recognize which is the surface I want to connect with. Are there any more information can be provided?
Thank you!
3D-objects
3D-objects
- Attachments
-

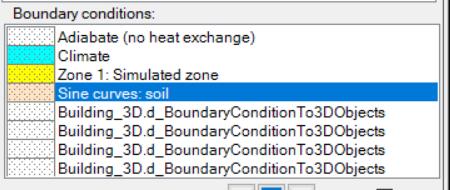

- QQ截图20190422152331.jpg (21.23 KiB) Viewed 5572 times
Re: 3D-objects
Hello,
the film should be still available here: https://www.wufi-wiki.com/wufifilme/Plus/Plus_3D.mp4
unfortunatelly the naming of components, to set thier outer side boundary condition to the 3D-Ojbect is wrong in version 3.2.0.1. The only workaround with this version is to color the component (an ungrouped component) in an individual color and double click on each boundary condition until you find the same color (attached picture)
the film should be still available here: https://www.wufi-wiki.com/wufifilme/Plus/Plus_3D.mp4
unfortunatelly the naming of components, to set thier outer side boundary condition to the 3D-Ojbect is wrong in version 3.2.0.1. The only workaround with this version is to color the component (an ungrouped component) in an individual color and double click on each boundary condition until you find the same color (attached picture)
