Hi, I am working on my first PH project and have run into an issue exporting my model from sketchup into WUFI.

"Depicted objects interfere" If I click continue checking it will run though about 20 of these errors all over the model. These are all opaque assemblies, not shading elements. Is there anyway to fix these, or identify what is actually causing the problem?

Screen Shot 2024-09-10 at 2.56.03 PM.png (586.77 KiB) Viewed 705 times

[mpazold]

Hi,

sorry, the geometry import is quite accurate and not handling small, even does not accept very small, almost invisible errors.

Mostly they are because of (1) a polygon crosing another without an intersect line, or (2) polygons end on an plane

Depicted objects interfere Error.png (29.77 KiB) Viewed 630 times

You can try to use plugins, like the "Solid Inspector²" to find and might fix those error.

Or / And then you can try to add more lines like this. (In your case, i guess you have to zoom in a lot):

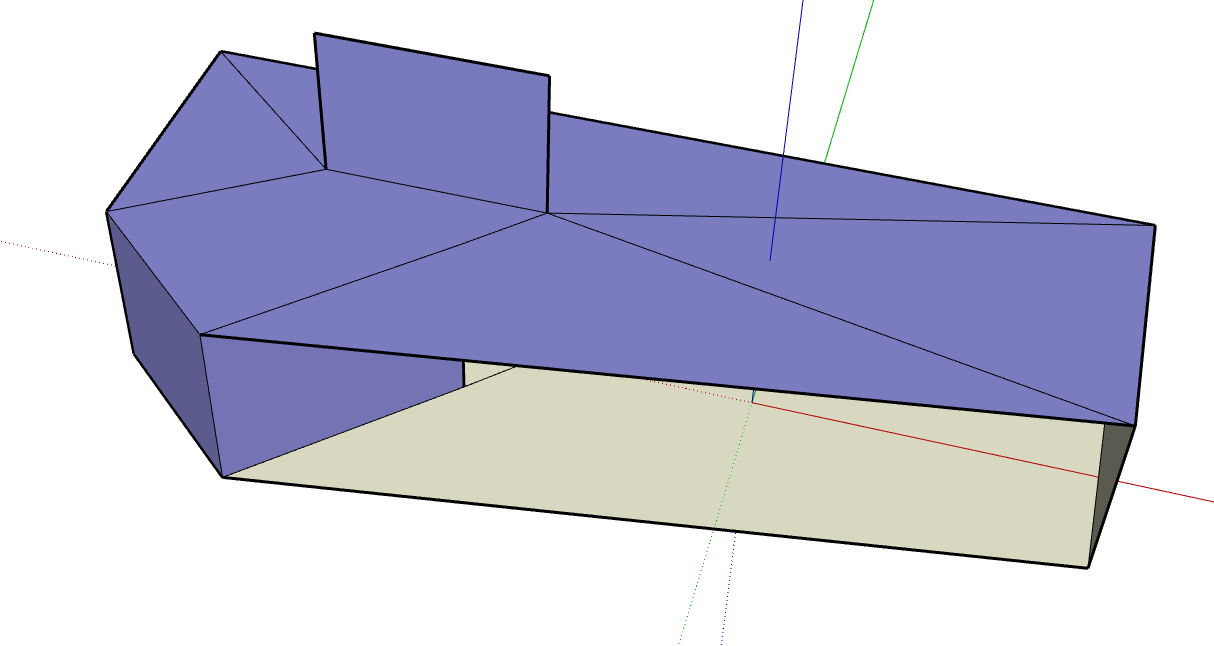

Depicted objects interfere Error - Fixed.png (24.72 KiB) Viewed 630 times
