Problems with processing

[avp081090]

Greetings

Im having troubles processing my file. It takes just one second for it to finish and it doesn´t give me any error messages, all it displays is this image:

[veitner]

This means at least one of your grid-volumes has height of zero (dy=0.00).
You need to check your geometry and grid. Most likely there are rectangles having different x-coordinates intended to start/end at same y-coordinates. But the y-coordinates are not exactly the same.

[avp081090]

Ahh okay..it did say something about layer#23 (where ever this is?) had a thickness of 0. This is probrably the issue

[avp081090]

hmm very weird..located which component that caused the problem, but as far as i could tell its coordinates was in perfect harmony with the components around it. I also tried different number of grid elements but that didn´t help either.

I finally got it to work after i moved som things around and made the component bigger.

[avp081090]

Hmm.. got the same problem again and can´t figure out how to solve this problem. I have gone through the geometry and everything seems to fit perfectly - so it has to do with the grid settings?

Best regards

[veitner]

Could you post your geometry (copy/paste the content of the geometry editor)?

[avp081090]

Could you post your geometry (copy/paste the content of the geometry editor)?

sure

Heres my geometry code:

Code: Select all

/r{%Macro for rectangle. Parameter: width height left bottom
newpath
name
moveto
dup 0 exch rlineto
exch 0 rlineto
0 exch neg rlineto
closepath
} def
0 0 0 setrgbcolor
/mm{1 mul}def%Macro for dimension mm
/cm{10 mul}def%Macro for dimension cm
12.9 mm 27 mm -0.725 mm 1 mm (Woodstock) r stroke
1.1 mm 6.3 mm 12.175 mm 3 mm (tape2) r stroke
1.1 mm 6.3 mm 12.175 mm 19.7 mm (tape3) r stroke
18.225 mm 7 mm 14.275 mm 2 mm (wood1) r stroke
1 mm 29 mm 13.275 mm 1 mm (coating 33) r stroke
110.975 mm 21 mm 14.275 mm 9 mm (wood2) r stroke
62.775 mm 15 mm 62.475 mm -13 mm (wood3) r stroke
%45.25 mm 21 mm 80 mm 9 mm (wood4) r stroke
73.75 mm 7 mm 51.5 mm 2 mm (wood12) r stroke
10.5 mm 52 mm -0.725 mm -54.5 mm (woodstock2.1) r stroke
2.4 mm 31 mm 9.775 mm -33.5 mm (woodstock2.2) r stroke
2.4 mm 6.3 mm 9.775 mm -54.5 mm (woodstock2.3) r stroke
1.1 mm 9 mm 12.175 mm -14.5 mm (tape1) r stroke
18.225 mm 36 mm 14.275 mm -39.5 mm (wood5) r stroke
19 mm 30 mm 32.5 mm -39.5 mm (wood6) r stroke
4.975 mm 33 mm 51.5 mm -39.5 mm (wood7) r stroke
3.5 mm 16 mm 56.475 mm -39.5 mm (wood8) r stroke
2.5 mm 15 mm 57.475 mm -54.5 mm (wood11) r stroke
6.5 mm 38 mm 59.975 mm -54.5 mm (wood9) r stroke
1.1 mm 6.3 mm 12.175 mm -54.5 mm (tape4) r stroke
3.2 mm 9 mm 53.275 mm -54.5 mm (EPDM4) r stroke
%3 mm 3.5 mm 13.275 mm -2.5 mm (EPDM6) r stroke
40 mm 190 mm 13.275 mm -233.5 mm (outrup) r stroke
3.5 mm 7 mm 56.475 mm -23.5 mm (EPDM5.2) r stroke
5 mm 11 mm 56.475 mm -16.5 mm (EPDM5.1) r stroke
19.225 mm 1 mm 14.275 mm 1 mm (coarting13) r stroke
1 mm 7 mm 32.5 mm 2 mm (coating14) r stroke
18 mm 1 mm 33.5 mm 8 mm (coating15) r stroke
1 mm 7 mm 50.5 mm 1 mm (coating16) r stroke
10.975 mm 1 mm 51.5 mm 1 mm (coating17) r stroke
1 mm 14 mm 61.475 mm -13 mm (coating18) r stroke
1 mm 37 mm 13.275 mm -40.5 mm (coating21) r stroke
42.2 mm 1 mm 14.275 mm -40.5 mm (coating22) r stroke
1 mm 15 mm 56.475 mm -54.5 mm (coating23) r stroke
20.225 mm 1 mm 13.275 mm -3.5 mm (coating28) r stroke
1 mm 6 mm 32.5 mm -9.5 mm (coating29) r stroke
18 mm 1 mm 33.5 mm -9.5 mm (coating30) r stroke
1 mm 3 mm 50.5 mm -8.5 mm (coating31) r stroke
4.975 mm 1 mm 51.5 mm -6.5 mm (coating32) r stroke
40 mm 3 mm 13.275 mm -43.5 mm (air2) r stroke
3.2 mm 5 mm 53.275 mm -45.5 mm (air3) r stroke
10.975 mm 6.5 mm 50.5 mm -5.5 mm (air4) r stroke
17 mm 16.5 mm 33.5 mm -8.5 mm (air5) r stroke
20.225 mm 3.5 mm 13.275 mm -2.5 mm (air6) r stroke
1.1 mm 33.7 mm 12.175 mm -48.2 mm (air8) r stroke
1.1 mm 10.4 mm 12.175 mm 9.3 mm (air9) r stroke
2.4 mm 14.7 mm 9.775 mm -48.2 mm (air10) r stroke

[veitner]

Wow - never thought about such complicated geometries!

I guess the problems are caused by the 1/1000 mm. Usually we limit our layers to 1mm.

Would it be possible to redefine your construction to avoid fractions of mm?

[avp081090]

Wow - never thought about such complicated geometries!

I guess the problems are caused by the 1/1000 mm. Usually we limit our layers to 1mm.

Would it be possible to redefine your construction to avoid fractions of mm?

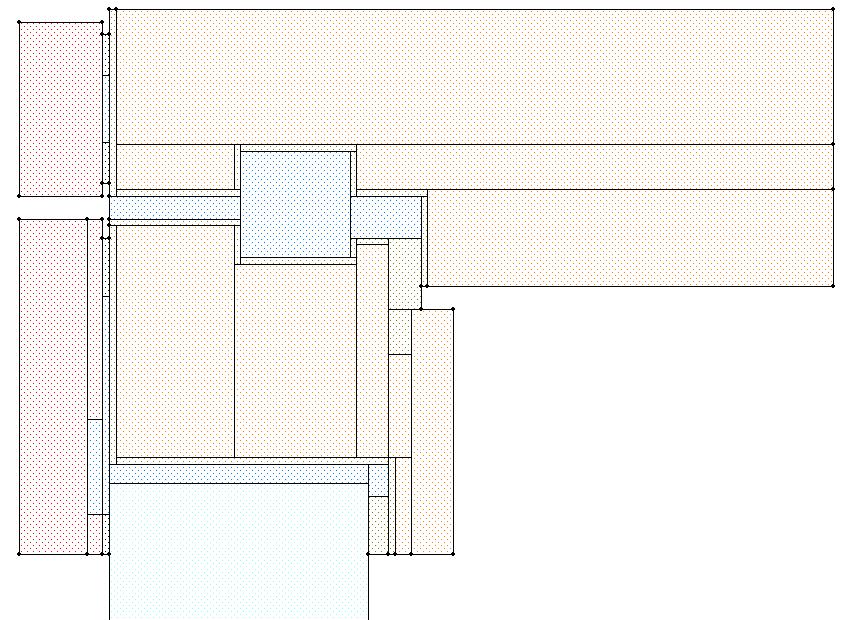

it is a crosssection of a window so it can be easily become complicated

okay so it is because some of my lengths are fx 20.225? so perhaps i should try to make it in integer mm.

I will try to redefine it - I will let you know if it works Thanks
